AiFUZZY-919
Novel LCD display High performance multifunctional temperature controller/regulator
Reflecting higher accuracy, more comprehensive performance, universal input, in addition to conventional output modules, it also adds functions for valve motor control and valve position feedback, with manual/automatic undisturbed switching function, supporting external signal setting set values, RS485 communication function, suitable for precise measurement and control of temperature, flow, pressure and other industrial occasions.
Power supply: AC100~240V or DC12~24V.
Display mode: Color LCD display screen.
Measurement accuracy: level 0.1.
Input specifications: thermocouple, thermal resistance, linear voltage, linear current input.
Control output: relay contact switch output module, SSR drive voltage output module, SCR non-contact switch output module, One-way/ three-way SCR zero-crossing trigger output module, one-way SCR phase-shift trigger output module , analog linear voltage and current output module, valve motor dedicated output module.
Alarm output: Up to 4 alarm outputs can be set up.
Communication function: RS485 communication interface or RS232 communication interface.
Main features
Related details

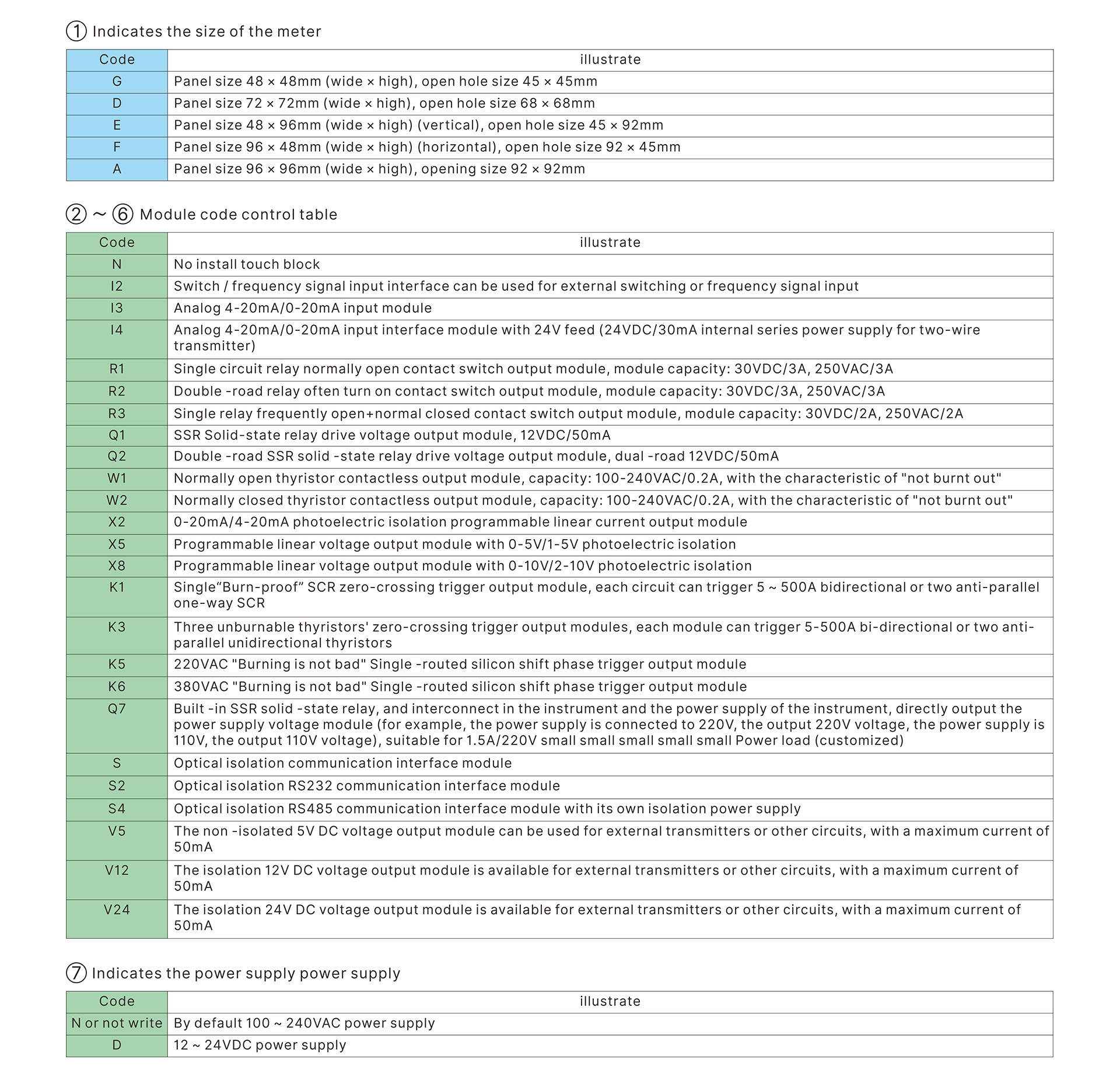

Model definition
