AiFUZZY-819
Classic LED display High performance multifunctional temperature controller/regulator
Reflecting higher accuracy, more comprehensive performance, universal input, in addition to conventional output modules, it also adds functions for valve motor control and valve position feedback, with manual/automatic undisturbed switching function, supporting external signal setting set values, RS485 communication function, suitable for precise measurement and control of temperature, flow, pressure and other industrial occasions.

Power supply: AC100~240V or DC12~24V.

Display mode: SMD LED synthetic digital tube.

Measurement accuracy: level 0.1.

Input specifications:  thermocouple, thermal resistance, linear voltage, linear current input.

Control output: relay contact switch output module, SSR drive voltage output module, SCR non-contact switch output module, One-way/ three-way  SCR zero-crossing trigger output module, one-way SCR phase-shift trigger output module, analog linear voltage and current output module, valve motor dedicated output module.

Alarm output: Up to 4 alarm outputs can be set up.

Communication function: RS485 communication interface or RS232 communication interface.

Main features
Related details
Model definition
Technical Parameter
Data download
Main features
AiFUZZY819-组合图1-1920.jpgAiFUZZY819主要特点 - 英文.jpg
Related details
16911377741853427.jpg16933800456838269.jpgAiFUZZYXX9  硬件升级-英文.jpg

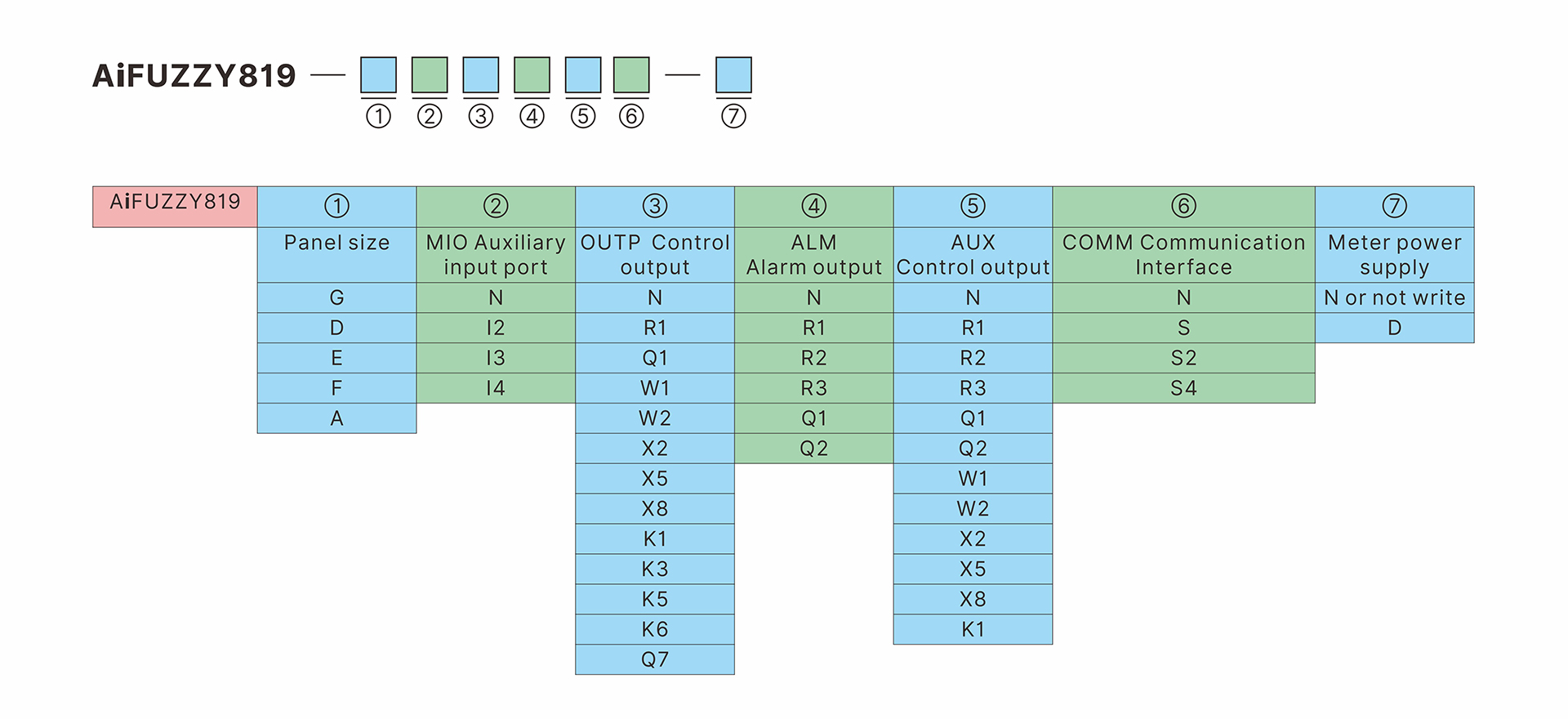

Model definition




Technical Parameter

AiFUZZY819技术参数 - 英文.jpg
